Mixer per dj

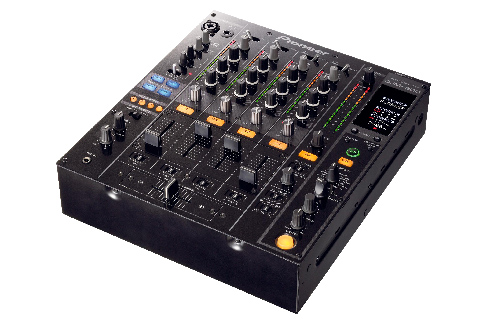

pioneer djm 800
SPECIFICATIONS
Input Terminal ................................................................ CD/LINE x 5 (RCA)
........................................................................................ PHONO x 3 (RCA)
..................................................................DIGITAL IN x 4 (COAXIAL S/PDIF)
.........................................................MIC x 2 (XLR/1/4” combo x 1, 1/4” x 1)
Output Terminal ................................. MASTER OUT x 2 (RCA x 1, XLR x 1)
...................................................................... BOOTH OUT x1 (1/4” PHONE)
..................................... HEADPHONE MONITOR OUT x1 (TOP PANEL 1/4”)
........................................................................................REC OUT x1 (RCA)
...............................................................DIGITAL OUT x1 (COAXIAL S/PDIF)
Other Terminal .................................................................... SEND x 1 (1/4”)
.................................................................................MIDI OUT x 1 (5pin DIN)
............................................................... CONTROL x 4 (3.5mm MINI JACK)
Frequency Response ............................................................. 20Hz - 20kHz
Total Harmonic Distortion ..................................................... 0.005% or less
Signal-to-Noise Ratio .............................................................. 105dB (LINE)
Head Room ........................................................................................ 19dB
Power Requirements ........................................................... AC 120V, 60Hz
Power Consumption ............................................................................ 32W
Dimensions (without package) ....................... 12.6” (W) x 15” (D) x 4.25” (H)
Weight (without package) ................................................................. 17.6lbs
