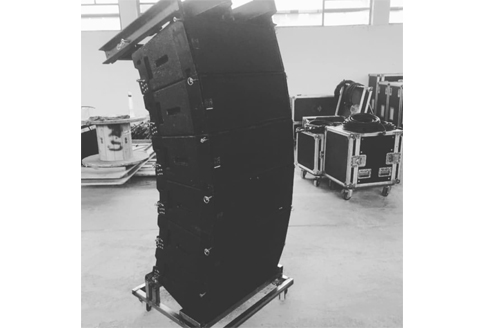

Martin audio w8lm
Martin audio w8lm
TYPE Three-way, compact line array element
FREQUENCY RESPONSE (5) 60Hz-18kHz ± 3dB
DRIVERS: LF + MF Section 8” (200mm)/2” (50mm) voice coil, reflex-loaded
direct radiator
8” (200mm)/2” (50mm) voice coil, neodymium
driver, front horn loaded, rear reflex loaded
HF Section 2 x 1” (25mm) exit HF compression drivers,
horn loaded
RATED POWER (2) LF + MF: 400W AES, 1600W peak
HF: 75W AES, 300W peak
Passive: 400W AES, 1600W peak
SENSITIVITY (6) LF + MF: 100dB
HF: 106dB
Passive: 99dB rising to 105dB at HF
MAXIMUM SPL LF + MF: 125dB continuous, 131dB peak
(calculated @ 1m) HF: 125dB continuous, 131dB peak
Passive: 124dB continuous, 130dB peak
NOMINAL IMPEDANCE LF + MF: 12 ohms
HF: 12 ohms
Passive: 12 ohms
DISPERSION (-6dB) 100º horizontal (down to 800Hz),
120º horizontal (down to 700Hz) @ -10dB
7.5º vertical
CROSSOVER 300Hz passive, 2.2kHz active or passive
ENCLOSURE Vertical trapezoid with 3.75º wall angle, multilaminate birch ply construction
FINISH Textured paint
PROTECTIVE GRILLE Perforated steel
CONNECTORS 2 x Neutrik NL4
DIMENSIONS (W) 620mm x (H) 243mm x (D) 400mm
(W) 24.4ins x (H) 9.57ins x (D) 15.75ins
WEIGHT 29kg (64lbs)
(including rigging hardware)
